MULTI BLADE RIP SAW MJ263H ( TOP AND BOTTOM SAW)
Introduction:

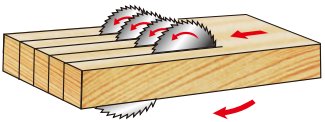

Professional solution: upper and bottom two saws make multichip rip cut vertically for under 180mm thick and 300mm wide wood.
Equipped with up and down two sets of anti-kickback fingers at the feeding inlet for operator safety. The feeding wheels with teeth ensure the stable and smooth feeding.
Inquire Now
Product Details
| Specifications | MJ263H | |
| Working width | mm | 300 |
| Working thickness | mm | 10~18045~180 |
| Min.Working length (single/continuous) | mm | 635\450 |
| Bottom cutter dia | mm | \ |
| Right&left vertical cutter dia | mm | \ |
| Upper cutter dia | mm | \ |
| Left&right saw blade Dia | mm | \ |
| Bottom spindle | KW\HP | \ |
| Right&left vertical spindle | KW\HP | \ |
| Up horizontal spindle | KW\HP | \ |
| left, right saw spindle motor | KW\HP | \ |
| Saw spindle Dia | mm | Φ50 |
| Saw spindle speed | r/min | 4000 |
| Planer spindle Dia | mm | \ |
| Planer spindle speed | r/min | \ |
| Upper saw blade dia | mm | Φ250~Φ305 |
| Bottom saw blade dia | mm | Φ250~Φ305 |
| Feeding speed | m/min | 4~18 |
| Totol power | kW\HP | 65.3\87 |
| Up saw spindle motor | kW\HP | 30\40 |
| Bottom saw spindle motor | kW\HP | 30\40 |
| Feeding motor | kW\HP | 3\4 |
| rear auxiliary feeding motor | kW\HP | \ |
| Lifting motor for upper and bottom saw spindle | kW\HP | 2x0.75\1 |
| Beam lifting motor | kW\HP | 0.75\1 |
| Saw spindle lifting motor | kW\HP | \ |
| Air supply pressure | MPa | \ |
| Suction hood Dia | mm | 3xΦ150 |
| Overall dimensions | mm | 2950x1620x1770 |
| Weight | kg | 3300 |
