MULTI BLADE RIP SAW QMJ 143E
Introduction:

Professional solution: make multi-blade rip cut for under 120mm thick wood.

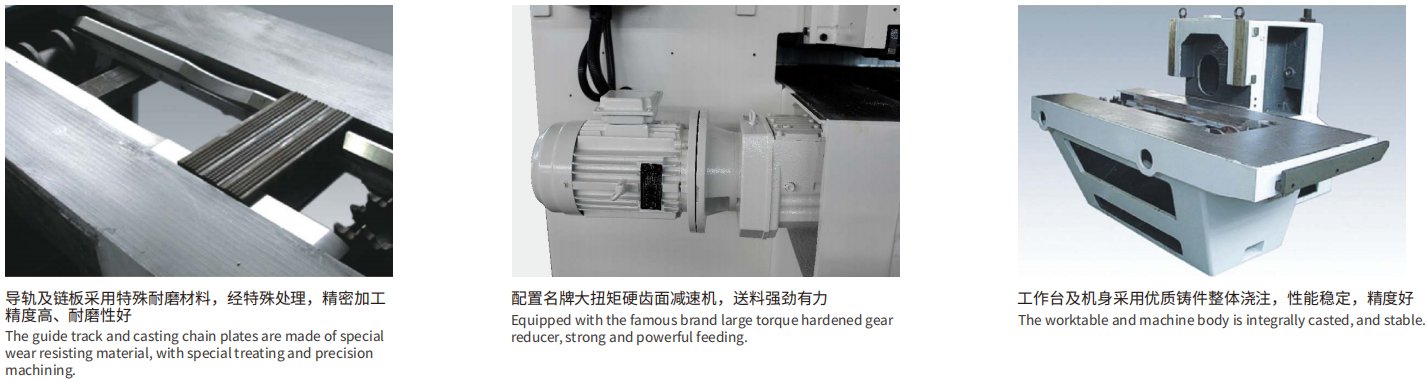

Heavy and stable machine body, equipped with feeding crawler belt and guide  track, and the saw shaft is strong and rigid, doing the multi-slice rip cut.


Share:

Inquire Now

Product Details


SpecificationsQMJ143E
Max.working widthmm300
Working thicknessmm10~120
Min.working lengthmm\
Min.working length (single/continuous)mm600\300
Saw spindle DiammΦ55
Reducing sleeve diammΦ70
Saw spindle speedr/min4000
Blade diammΦ205~Φ380
Feeding speedm/min4~30
Totol powerKW\HP39.6\53
Feeding motorKW\HP2.2\3
Spindle motorKW\HP37\50
Lifting motorKW\HP0.37\0.5
Beam lifting motorKW\HP\
Saw spindle lifting motorKW\HP\
Air supply pressureMPa\
Suction hood Diamm2xΦ150
Overall dimensionsmm2200x1500x1580
Weightkg2300
