MULTI BLADE RIP SAW QMJ-145H ( TOP SAW)
Introduction:
Professional solution: make multi-blade rip cut for under 170MM thick wood.

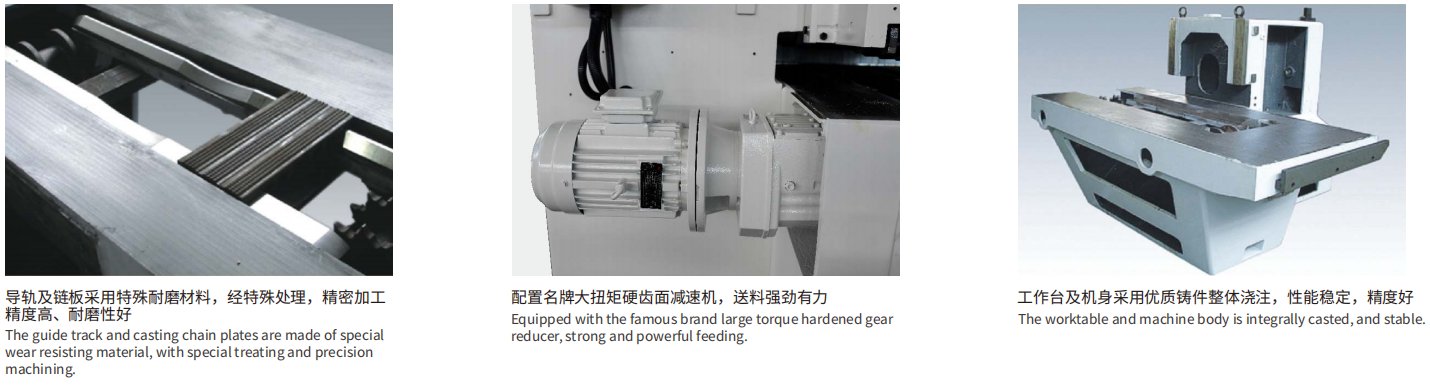

Heavy and stable machine body, and equipped with advanced V guide and chain plates, and the sawshaft with sufficient strength and rigidity do the multi-slice rip cut.
Inquire Now
Product Details
| Specifications | QMJ145H | |
| Max.working width | mm | 500 |
| Working thickness | mm | 10~170 |
| Min.working length | mm | 740 |
| Min.working length (single/continuous) | mm | \ |
| Saw spindle Dia | mm | Φ60 |
| Reducing sleeve dia | mm | Φ80 |
| Saw spindle speed | r/min | 2600 |
| Blade dia | mm | Φ405~Φ505 |
| Feeding speed | m/min | 3~24 |
| Totol power | kW\HP | 81.3\109 |
| Feeding motor | kW\HP | 5.5\7.5 |
| Spindle motor | kW\HP | 75\100 |
| Lifting motor | kW\HP | 0.75\1 |
| Beam lifting motor | kW\HP | \ |
| Saw spindle lifting motor | kW\HP | \ |
| Air supply pressure | MPa | 0.3~0.6 |
| Suction hood Dia | mm | 2xΦ150 |
| Overall dimensions | mm | 4850x2020x1880 |
| Weight | kg | 4250 |
