THICKNESSER HEAVY DUTY MBZ106D-H
Introduction:
Professional solution: one-side planing for setting certain thickness,fit for finger joint factory, etc; improving the wood using ratio.
Equipped with big diameter cutter spindle, four stand columns synchronously rise and fall, and equipped with bottom active roller in the worktable and feed speed frequency control, ensuring the strong cutting and good processing quality.
Inquire Now
Product Details
| Specifications | MBZ106D\D-H | |
| Working width | mm | 40~630 |
| Working thickness | mm | 3~300 |
| Min.working length | mm | 300 |
| Max cutting depth (Upper\Botom) | mm | 8 |
| Feeding speed | m/min | 5~ 18 |
| Rotation speed of spindle | r/min | 5000 |
| Spindle cutting dia | mm | Φ125 |
| Total power | kW\HP | 9.4\ 12.5 |
| Spindle motor | kW\HP | 7.5\ 10 |
| Top spindle motor | kW\HP | \ |
| Bottom spindle motor | kW\HP | \ |
| Front blade spindle motor | kW\HP | \ |
| Back blade spindle motor | kW\HP | \ |
| Feeding motor | kW\HP | 1.5\2 |
| Lifting motor | kW\HP | 0.37\0.5 |
| Suction hood Dia | mm | 2xΦ150 |
| Overall dimensions | mm | 1150x1300x1520 |
| Weight | kg | 1250 |
 |  |  |

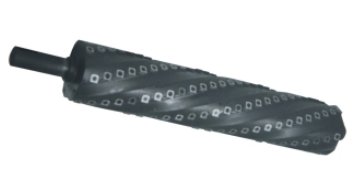

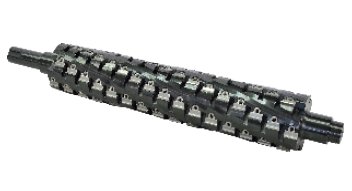

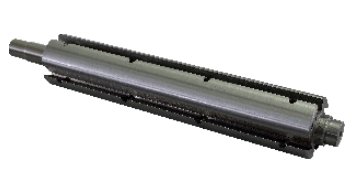

| Heavy-duty spiral cutter spindle(standard) | Spiral cutter spindle (optional) | Straight blade cutter spindle (optional) |
